BMS
Battery Management (BMS)

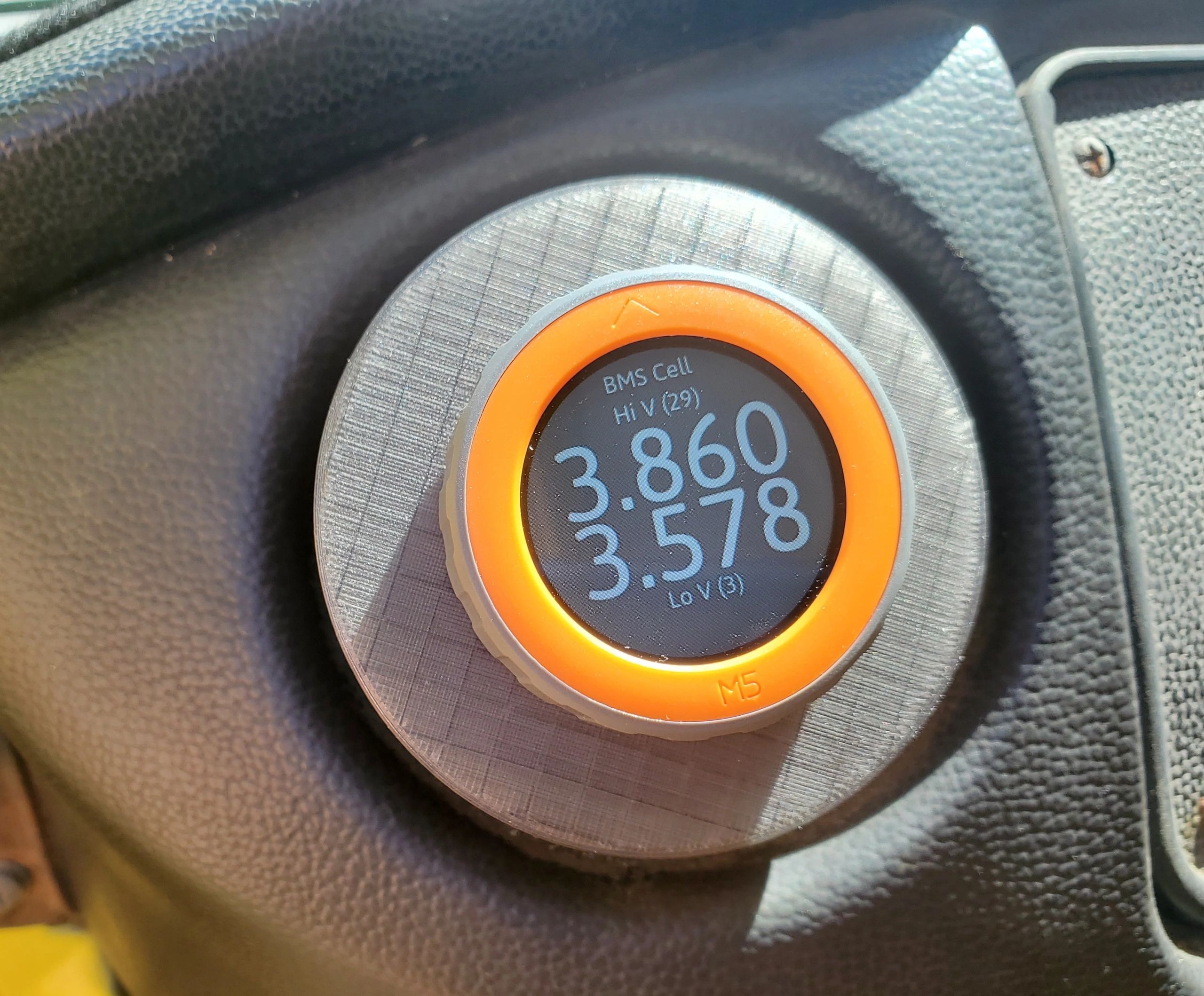

Supports Dilithium, Tesla Classic Model S/X modules, and Zeva. View voltages of all battery cell groups, monitor balancing status, and configure audio alarms for high/low voltage limits.
Electric Avenue EV Diagnostic Tool
CANOpener
See your homebuilt EV's CAN data
Detect and display live CANbus data from your EV conversion easily and inexpensively — all in one centralized rotary/touch display and live Wi-Fi web server.
Open your CAN!
All your conversion telemetry in one place.
CANOpener detects the CANbus data coming from your EV conversion components and unifies them into a single clean interface. See and monitor your motor controller, charger, BMS, current sensor, and GPS from multiple different manufacturers without juggling separate proprietary displays.
01Tap CANbusConnect CAN high and low leads from your vehicle harness.
02Auto-DetectCANOpener parses broadcast frames from supported controllers and modules.
03On-Dash DisplayView high/low cell voltages, temperatures, Amps, and RPM on the rotary display.
04Wi-Fi ServerStream live telemetry, logs, and diagnostics directly to any phone or tablet browser.
Supported Subsystems
What CANOpener talks to
HV Charger
High Voltage Battery Chargers
Supports Thunderstruck TSM2500 and Elcon CANbus chargers. Monitor real-time charging voltage, charge current commands, and charge state.
Inverter
Motor Controllers
Retrieve live telemetry from your Hyper-9 (SME) motor controller including motor/inverter temperatures, RPM/speeds, and health status. Also supports Kelly and Warp controllers.
Sensor
Current & HV Sensors
Supports LEMCab and Isabellenhütte IVT-S current and high-voltage sensors for real-time Amps, Amp-hours (Ah), Watt-hours (Wh), and accurate State of Charge (SOC) calculations.
GPS
GPS Navigation & Telemetry
Supports AEM GPS units for speed, trip distance, derived driving range, estimated charge completion time, and real-time efficiency metrics.
Wi-Fi & OTA
Web Server & Customization
Includes an integrated Wi-Fi web server for live wireless telemetry on phones or laptops. Software is under active development and can be tailored for your specific vehicle build.
Custom Applications
Need CANOpener for your specific project?
Whether you are building a custom classic conversion, maintaining a fleet of conversions, or need custom CAN IDs decoded, CANOpener can be adapted to your hardware setup.
